Product Description

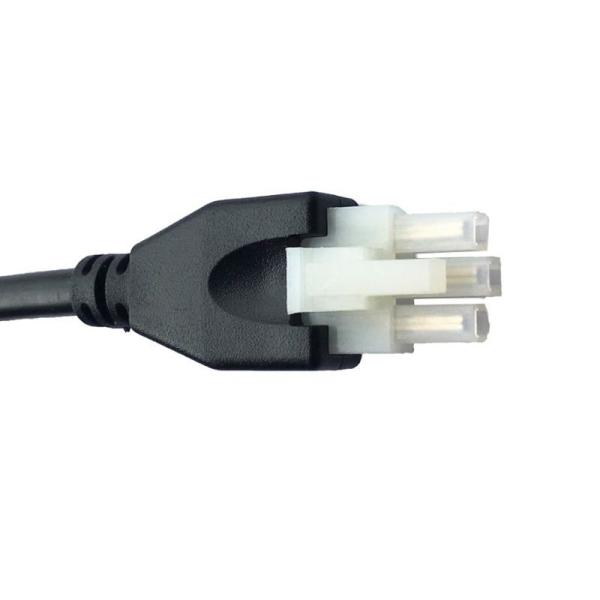

Molex MicroFit MiniFit NanoFit MegaFit Overmolded Cable Assemblies
| Product Name | overmolded molex cable |
| Connector Type | Molex, JST, JAE, TYCO, AMP, KET, Delphi, HIROSE etc original or
equivalent |
| Housing Pitch | 1.0, 2.0, 2.54, 3.0, 3.96, 6.35mm or under customer's request |
| Terminal type | IDC, Crimped, Soldered |
| Application | Automotive/Electronic wire harness |
| Cable preparation | Trimmings, Stripping, Tin coating, Shielding, Twisting |
| Engineering service: | OEM and ODM service ,2D drawing |
| Cable Jacket Material | PUR, TPE, PTFE, PVC, HD-PE, Rubber, Silicone etc. |
| Quality Control: | 100% inspected before dispatching |
| Delivery Time | 10- 20 days, base on projects details |
| Cable length&color | Depends on your request |
| Sample | Will send sample before mass production |
| Packing | 10PCS per bag with label,export standard carton |
Cablelinker can build custom overmolded cable assemblies designed for today's sophisticated applications. Overmolded cable
assemblies that can withstand harsh or demanding environments or
have performance parameters that must be met for your industry. We
have the engineering, design, and technology resources to take a
cable assembly concept and transform it into a solution that can be
manufactured to meet the demands of your application.
Cablelinker's over molded cable assemblies are designed for long
life and reliable performance in a variety of applications. We
manufacture straight, right-angle, or customer specific molded back
shells for different connectivity situations.
Improved Performace
Overmolding connectors offers significant opportunities for product
improvements with improved strain and flex relief. Manufactured
properly, it can improve performance and reduce total cost.
Overmolding benefits provide the user with interesting
opportunities for strain relief and improved pull strength not
available with conventional designs.
From extreme environmental stresses to the strains of abrasion and
high-repetition movement, molded cable assemblies must be built to
last. After choosing the right materials (PVC, rubber, santoprene,
ABS, Polycarbonate (PC), Macromelt and many others) we identify the
best production processes. Each stage of premolding, potting and
overmolding is reviewed.
We provide the right mix of waterproofing and abrasion resistance,
meeting IP67 and IP68 standards if necessary. Soldering and crimp
joints are examined, and premolding, overmolding or both can be
incorporated to secure the connections and provide strain relief,
durability and a long, useful life. We can design custom potting
fixtures machined in specific shapes, adding coatings to the
potting fixtures to ensure a good release and a clean finish to the cosmetic appearance desired of the finished part.
Our customer focus allows us to provide high mix low volume all the
way up to high volume applications with the right over molded cable
solutions. Our tooling and lead times are reasonable as we
understand that there are not large budgets for cable tooling in
the product development process.
